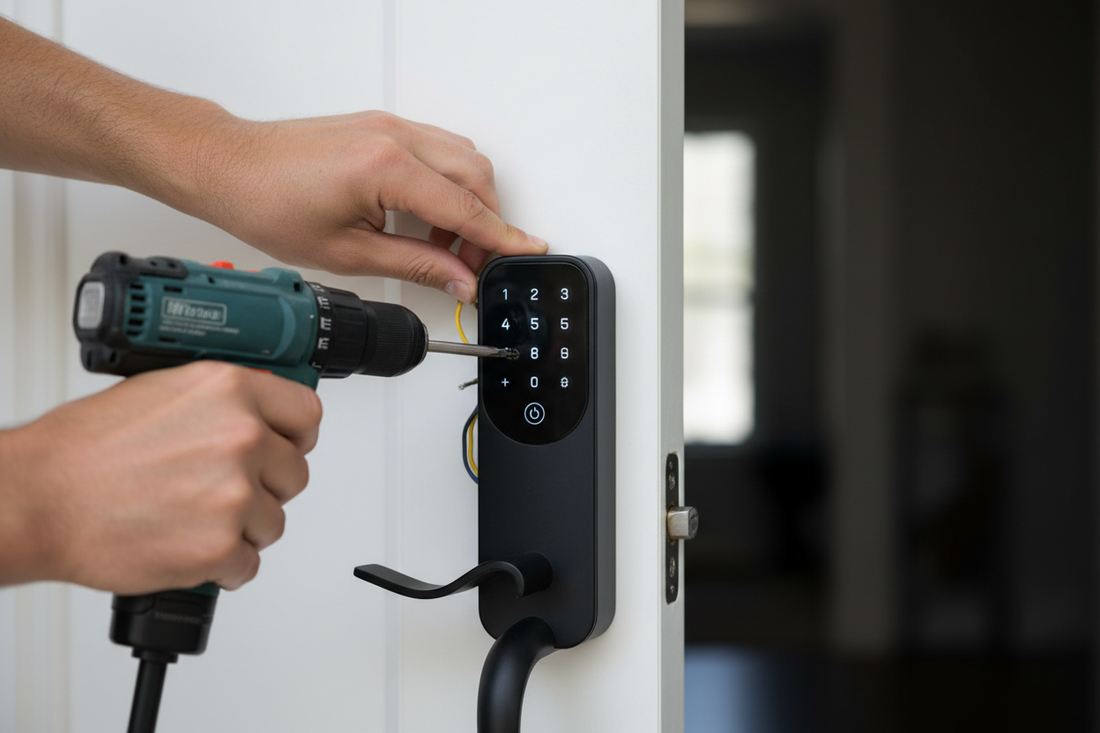

Hands installing a smart lock on a white front door with a screwdriver

How to Install a Smart Lock in 2026: Step-by-Step Guide (No Electrician Needed)

The #1 Reason People Don't Buy a Smart Lock

It's not the price. It's not the features. It's the fear of installation.

"I'm not handy." "I'll need an electrician." "What if I mess up my door?"

Here's the truth: installing a smart lock is one of the easiest home upgrades you can make. No wiring. No drilling (in most cases). No special skills. If you can use a screwdriver, you can install a smart lock — in under 30 minutes.

This guide walks you through the entire process, from checking your door compatibility to completing the app setup. We've broken it down into clear steps so you know exactly what to expect before you start.

Before You Start: Check Your Door Compatibility

Door compatibility measurements diagram showing door thickness, backset, and bore hole dimensions

Most smart locks are designed for standard US doors. Before buying, confirm these three measurements:

Measurement Standard Size How to Measure
Door thickness 1¾" (most common) Measure the edge of the door
Backset 2¾" or 2¼" Center of lock hole to door edge
Door prep (bore hole) 2¹₃₄" diameter Diameter of the large hole in the door

Most smart locks accommodate both 2¾" and 2¼" backsets and include an adjustable latch. Non-standard doors (very thick, very thin, or metal) may require an adapter kit — check the product specs before buying.

Renters: If you can't replace the deadbolt, look for a deadbolt add-on model that attaches to your existing lock's interior thumb turn. No permanent modifications required.

What You'll Need

  • ☐ Your new smart lock (most include all necessary hardware)
  • ☐ Phillips head screwdriver (usually included)
  • ☐ Flathead screwdriver (for removing old lock)
  • ☐ AA or AAA batteries (check your lock's requirements)
  • ☐ Smartphone with the lock's app installed
  • ☐ Wi-Fi password (for Wi-Fi enabled locks)
  • ☐ 15–45 minutes of uninterrupted time

You do NOT need: a drill, an electrician, special wiring, or any technical expertise.

Step-by-Step Installation Guide

7-step smart lock installation diagram showing the complete installation process

Step 1: Remove Your Existing Deadbolt

Start with the door open and unlocked.

  1. Locate the two screws on the interior side of your existing deadbolt
  2. Remove both screws with a Phillips head screwdriver
  3. Pull the interior and exterior components apart
  4. Slide the latch assembly out from the door edge
  5. Keep the old hardware in case you need to reinstall it later

Tip: Take a photo of your existing setup before removing anything.

Step 2: Install the New Latch

  1. Check the latch direction — the angled face should point toward the door frame
  2. If your backset is 2¼", adjust the latch per the instructions
  3. Insert the latch into the edge hole of the door
  4. Secure with the two provided screws
  5. Test that the latch moves smoothly in and out

Step 3: Install the Exterior Assembly

  1. Feed the connecting cable or spindle through the large bore hole from the outside
  2. Press the exterior keypad/fingerprint unit flush against the door
  3. Make sure the spindle aligns with the latch mechanism
  4. Hold in place — you'll secure it from the inside in the next step

Step 4: Install the Interior Assembly

  1. Connect the interior unit to the exterior unit's cable or spindle
  2. Press the interior unit flush against the door
  3. Align the mounting holes and insert the provided screws
  4. Tighten firmly but don't overtighten
  5. Install the batteries

Step 5: Test the Mechanical Operation

  1. With the door open, manually turn the thumb turn — the deadbolt should extend and retract smoothly
  2. Close the door and test that the deadbolt extends fully into the strike plate
  3. If the bolt doesn't align, adjust the strike plate position
  4. Test the physical key backup

Don't proceed to app setup until the mechanical operation is smooth.

Step 6: App Setup and Wi-Fi Connection

  1. Download the manufacturer's app on your smartphone
  2. Create an account or log in
  3. Follow the in-app pairing instructions
  4. Connect to your home Wi-Fi network (2.4 GHz)
  5. Name your lock (e.g., "Front Door")
  6. Set your master PIN code — use a unique 6–8 digit code

Step 7: Configure Your Settings

  • ☐ Auto-lock timer — set to 30 seconds to 5 minutes
  • ☐ Low-battery alert — enable push notifications
  • ☐ Tamper alert — enable if available
  • ☐ Firmware update — install any available updates immediately
  • ☐ Access log — enable activity notifications
  • ☐ Guest codes — set up additional user codes with schedules

Common Installation Problems (And How to Fix Them)

Problem Likely Cause Fix
Deadbolt doesn't extend fully Strike plate misalignment Adjust strike plate position; file if needed
Lock feels stiff or grinds Overtightened screws or misalignment Loosen screws slightly; realign components
App won't connect Wrong Wi-Fi band (5 GHz) Switch phone to 2.4 GHz network during setup
Keypad unresponsive Batteries not fully seated Remove and reinsert batteries firmly
Lock doesn't recognize fingerprint Enrollment issue Re-enroll fingerprint; try multiple angles
Door doesn't close properly after install Latch direction reversed Remove latch, flip angled face, reinstall

Installation Checklist — Don't Skip These

  • ☐ Door thickness and backset confirmed before purchase
  • ☐ Old deadbolt removed cleanly
  • ☐ New latch installed with angled face toward door frame
  • ☐ Exterior and interior units aligned and secured
  • ☐ Batteries installed
  • ☐ Mechanical operation tested with door open
  • ☐ Deadbolt aligns with strike plate when door is closed
  • ☐ Physical key backup tested
  • ☐ App downloaded and account created
  • ☐ Lock paired to app successfully
  • ☐ Wi-Fi connected (if applicable)
  • ☐ Master PIN set (unique, 6–8 digits)
  • ☐ Auto-lock timer configured
  • ☐ Firmware updated
  • ☐ Guest codes set up as needed

Special Cases: Renters and Non-Standard Doors

For Renters

If your lease prohibits replacing the deadbolt, look for a deadbolt add-on smart lock. These models clamp onto the interior side of your existing deadbolt's thumb turn. Installation takes under 10 minutes, requires no tools, and leaves zero permanent modifications.

For Non-Standard Doors

Doors thicker than 2", thinner than 1½", or with a non-standard bore hole may need an adapter kit. Check the manufacturer's compatibility page before purchasing.

For Metal Doors

Most smart locks work on metal doors. The installation process is identical. If you need to adjust the strike plate, you'll need a metal file rather than a wood chisel.

Our Recommended Smart Locks for Easy Installation

These models are known for straightforward DIY installation and clear setup instructions.

Award Pick Install Time Best For
⭐⭐⭐⭐⭐ Easiest Overall DESLOC B200 WiFi ~20 min Homeowners, full replacement
⭐⭐⭐⭐ Easiest for Renters Fingerprint Smart Lock (Black) ~10 min No permanent modification
⭐⭐⭐⭐ Best Complete Kit DESLOC B200 + Handle Set ~30 min Full door hardware upgrade
⭐⭐⭐⭐ Best Budget Keyless Entry — 150 Codes ~20 min First smart lock, simple setup

→ Browse the full Home Security collection

Frequently Asked Questions

Do I need an electrician to install a smart lock?

No. Smart locks run on batteries and require no wiring. Installation is entirely mechanical — screwdriver only in most cases.

Will installing a smart lock void my door warranty?

Replacing a deadbolt is a standard home maintenance task and does not void door warranties. Check your specific door manufacturer's terms if you're concerned.

Can I install a smart lock on a door with a double cylinder deadbolt?

Most smart locks are designed for single cylinder deadbolts. Double cylinder deadbolts (key on both sides) require a different approach — check compatibility before purchasing.

What if my door has a non-standard backset?

Most smart locks include an adjustable latch that accommodates both 2¾" and 2¼" backsets. Non-standard backsets may require an adapter or a different model.

How do I know if my Wi-Fi is compatible?

Most smart locks require a 2.4 GHz Wi-Fi network. If your router broadcasts both bands on the same name, temporarily connect your phone to the 2.4 GHz band during setup.

What if the installation doesn't work out?

Simply reinstall your original deadbolt. Keep the old hardware in a safe place during installation. The process is fully reversible.

Related Guides

Ready to Install Your Smart Lock?

You have everything you need. Pick your lock, set aside 30 minutes, and you'll have a smarter front door before lunch.
