About This

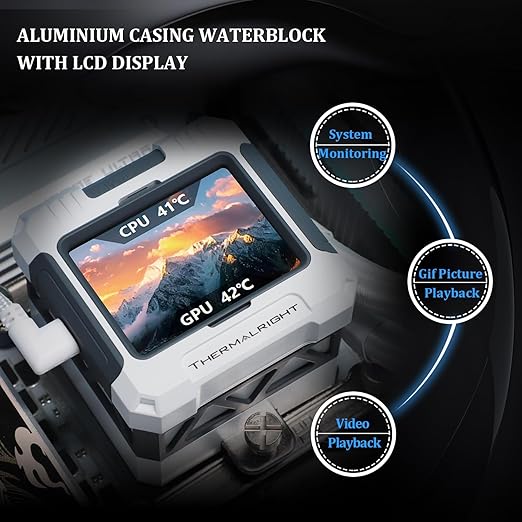

• [LCD screen water pump]The pump of the water-cooled cooler is a new generation of water pump system, which can not only improve the heat absorption efficiency, but also reduce the operating noise. Different from ordinary water pumps, the water pump is a new IPS LCD screen, which can support DIY various static & dynamic picture switching, support system screen projection display (subject to software), increase the visual interest while high heat dissipation.
• [Parameters of water cooling radiator]The size of the water cooling radiator is 397*120*52mm, the cold head: 69.2*69.2*60mm, the speed of the water pump is 3000RPM±10%, the voltage: DC 12V, the operating noise is ≤23dBA, with the cooperation of the high speed of the water pump and the fan, it can ensure that the cooler cools the CPU for a long time and excellently,and the low noise of the water pump is an absolute advantage in many water cooling radiators.

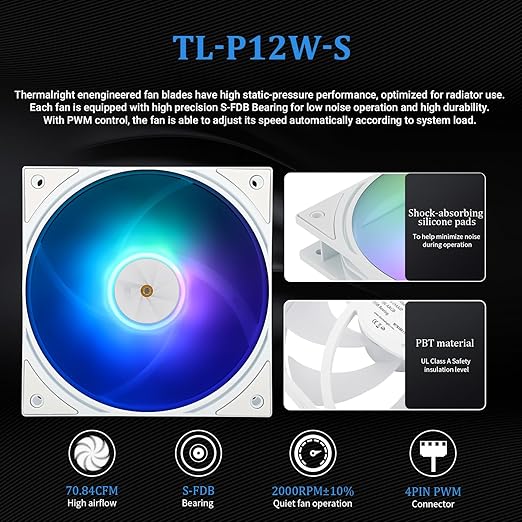

• [High Heat Dissipation Triple Fans]The TL-P12W-S fan is a wind-pressure fan with PWM temperature control function, the fan has excellent S-FDB bearings, and the blade design optimized for noise reduction not only reduces friction and vibration, but also reduces noise during operation. The high speed of 2000 rpm combined with the 360 size radiator can quickly take away the heat.
• [Excellent Bearing]The fan adopts STABLY-FDB bearing (abbreviation: S-FDB bearing), which can solve the problem of fan blade shaking in hoisting mode, and greatly improve the performance of the cooling fan. The S-FSB bearings have an industrial service life of up to 20,000 hours, ensuring the longevity of the CPU liquid cooling cooler.
• [Software description about the LCD screen]The power supply and data communication transmission of the LCD screen are provided by the USB interface of the motherboard 9PIN, please confirm the integrity of the wiring before software installation. The software can be downloaded from Thermalright's official website, and more details can be obtained from the store's customer service.

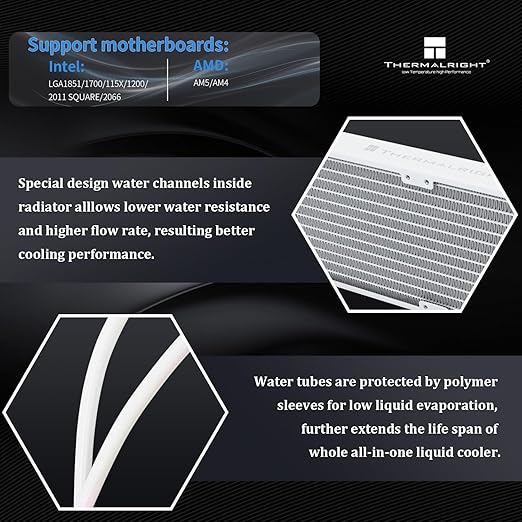

• [Strong compatibility] support AMD: AM4/AM5, Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700, each platform comes with the corresponding mounting fastener, the installation steps are simple, can be well installed on the corresponding CPU platform, it is recommended to install according to the installation video or manual. If you have any questions, please contact the store's customer service.

Overview

• Product Dimensions : 4.72"L x 2.05"W x 15.63"H
• Brand : Thermalright
• Power Connector Type : 4-Pin
• Voltage : 12 Volts
• Wattage : 3.4 watts
• Cooling Method : Water
• Compatible Devices : Desktop
• Noise Level : 23 Decibels
• Material : Plastic, Metal, Glass
• Maximum Rotational Speed : 3000 RPM
