About This

• [Parameters of water-cooled radiator] Water-cooled radiator size is 277*120*52mm (including fan), cold header: 63*63*60mm, fan size: 124*120*25mm, speed: 2000RPM+10%, running noise ≤28.2DB(A), voltage: DC 12V, airflow: 68.9CFM, in the water pump and fan high speed With the high speed of water pump and fan, it can ensure the cooler cools the CPU well.

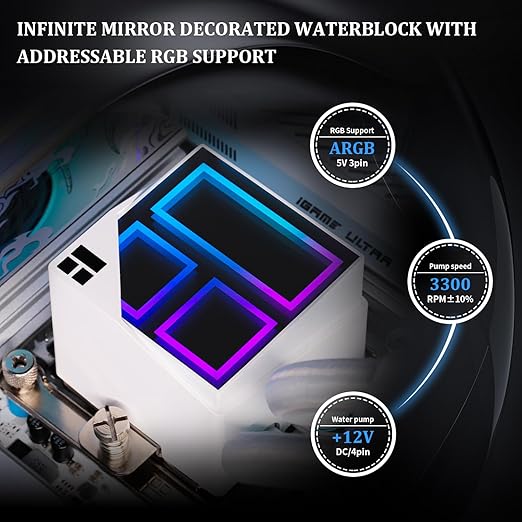

• [Infinity Mirror pump design] Pump for the new generation of pump system framework (Core V1.0), square shape of the pump, configure the exclusive Infinity Mirror LOGO light effects, outside the small triangle of frosted cut corners, unique to the design of the cooling, low vibration operation, pump power supply interface for the 4PIN PWM, the light interface for the 5V ARGB, can be accessed separately to the corresponding interface of the motherboard. The cooler is not only effective in dissipating heat, but also provides colourful interest.

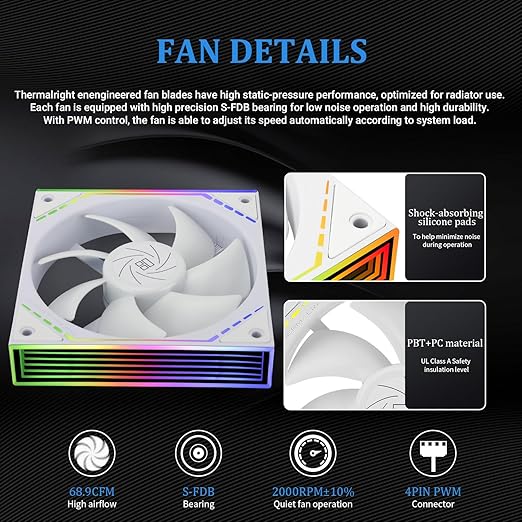

• [High Cooling Dual Fans] With the TL-M12W's fan, the fan with temperature control function, four thin curved line strips of ARGB light effects on both sides and infinite mirror light effects on the top and bottom enhance the fan's value.Excellent S-FDB bearing not only reduces friction and vibration, but also reduces the sound and prolongs the lifespan during operation.The high speed of 2000 RPM combined with the cooler exhaust and water pump can take away the high
• [ARGB Divine Light Synchronisation] The ARGB of the fan and water-cooling header is synchronised with the 5V 3pin on the motherboard to achieve light synchronisation, providing rich lighting effects while cooling efficiently, and supporting light effects in series to avoid insufficient lighting slots.
• [Wide range of compatibility] Support AMD:AM4/AM5,Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700/1851, each platform comes with corresponding installation fasteners, simple installation steps, can be well installed to the corresponding CPU platform, it is recommended to install according to the installation video. If you have any questions, please contact our customer service.

Overview

• Product Dimensions : 10.9"L x 4.72"W x 1.08"H
• Brand : Thermalright
• Power Connector Type : 4-Pin
• Voltage : 12 Volts
• Wattage : 12 watts
• Cooling Method : Water
• Compatible Devices : Desktop
• Noise Level : 28 Decibels
• Material : Aluminum
• Maximum Rotational Speed : 2000 RPM
