About This

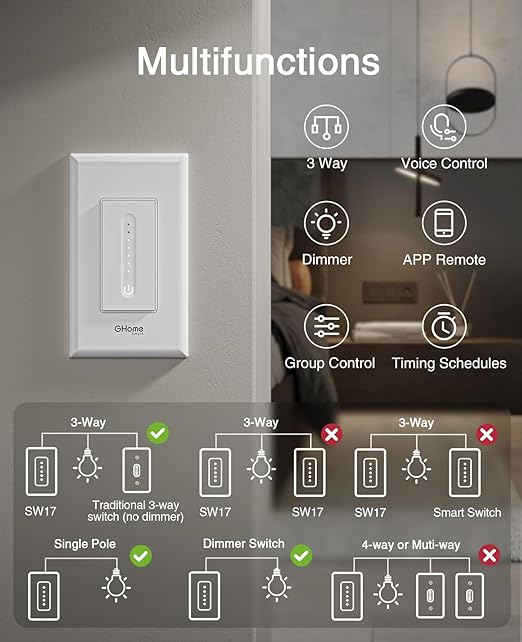

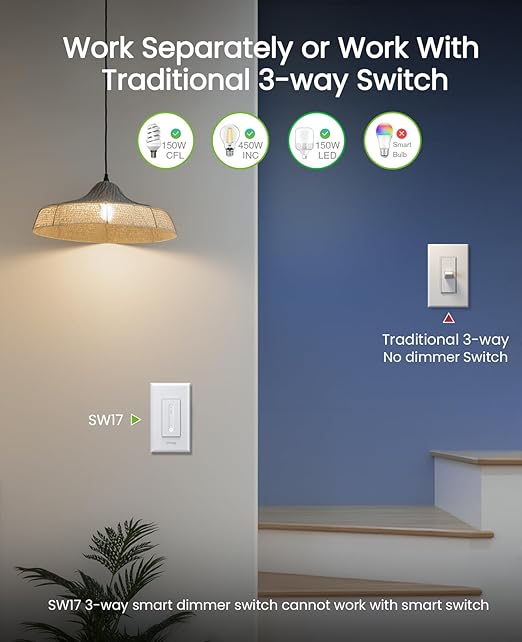

• 【3 Way Smart Dimmer Switch】This 3-way smart switch SW17 is designed to be used with a ordinary 3-way switch and cannot be used in pairs with smart switch. Single-Pole is also supported. NOTE: 4-way and multi-way are not supported. 2.4GHz Wi-Fi connection only (Don't support 5G WiFi)

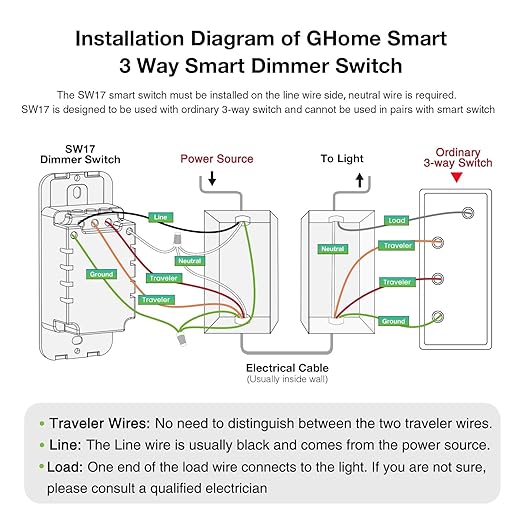

• 【Easy Installation】Neutral wire required. For 3-way, this SW17 smart switch must be installed on the Line Side; For 1-way, please use one of the traveler terminal as the load wire to connect light. 【Attention】For a better user experience, please download the APP to pair the switch and follow the prompts to update the firmware to V1.1.9.

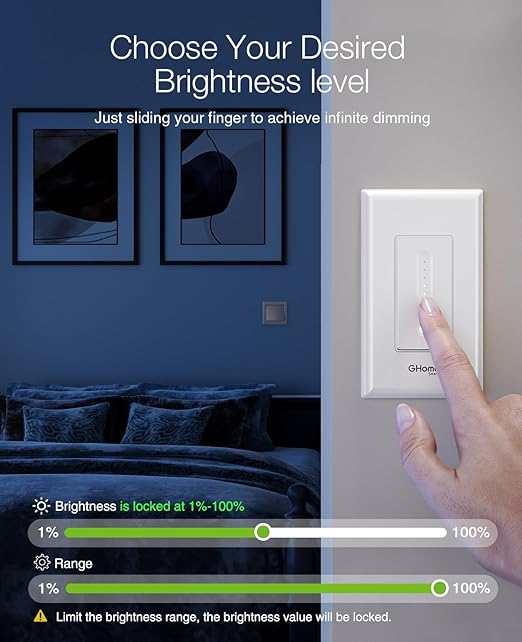

• 【1%-100% Dimming Control】Just slide your finger to adjust the brightness, or set the optimal dimming range in the app to create a perfect atmosphere. Input: 120V~ 50/60Hz, Max output: 150W LED, 150W CFL, 450W INC. NOTE: Not compatible with smart bulbs.
• 【Brightness Range】New brightness range bar only to address the issue of a few bulbs flickering at low brightness, just increase the minimum value when it's flashing. Otherwise, please default the Range Value to 1% -100% for normal use.Because for non flashing light bulbs, limiting the range value will also lock the switch dimming range.
• 【Smart Voice Control】This 3 way dimmer switch works with Amazon Alexa and Google Assistant, so you can control your light using simple voice commands. Free hands by using dimmer light switch and enjoy the convenience moment.
• 【Scheduling & App Control】Create customized schedules to light up your house automatically and remotely control them from anywhere anytime. Set your porch light to turn on 30 minutes after sunset and turn off 25 minutes before sunrise.

Overview

• Operation Mode : ON-OFF-ON
• Current Rating : 4 Amps
• Operating Voltage : 120 Volts
• Contact Type : Normally Open
• Connector Type : Screw Terminals
• Brand : GHome Smart
• Switch Type : Push Button
• Terminal : Screw
• Material : Acrylonitrile Butadiene Styrene

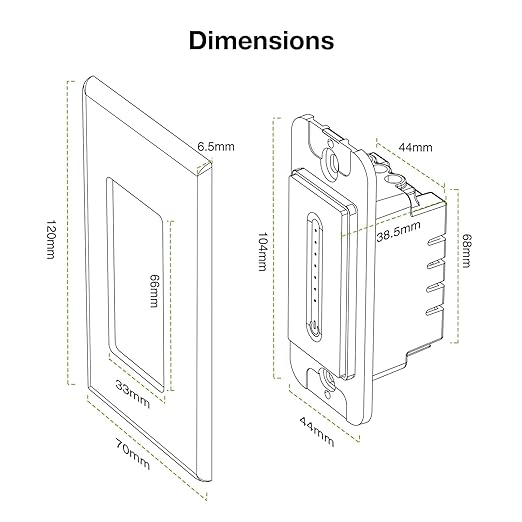

• Item dimensions L x W x H : 5.98 x 1.54 x 2.92 inches
