About This

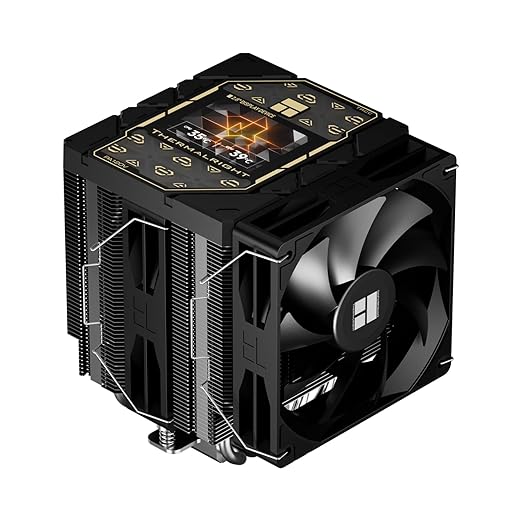

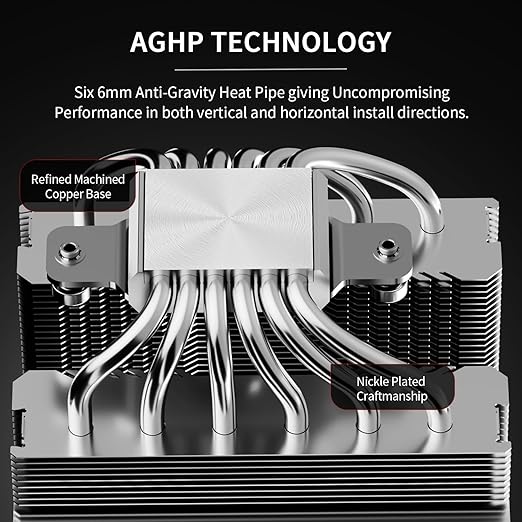

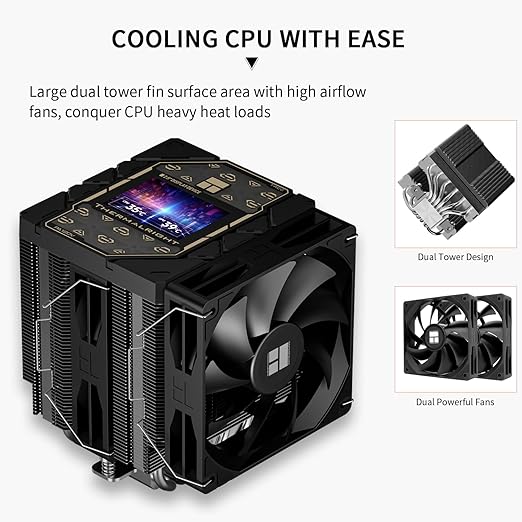

• [Effective Cooling] The CPU cooler utilizes a dual-tower design with two fans and a 2.8-inch IPS LCD screen on the magnetic top cover. It features six pure copper heat pipes paired with a micro-engraved copper base for optimal CPU contact. Combined with high-speed operation at 1850 RPM, this configuration ensures effective heat dissipation performance for the heatsink.

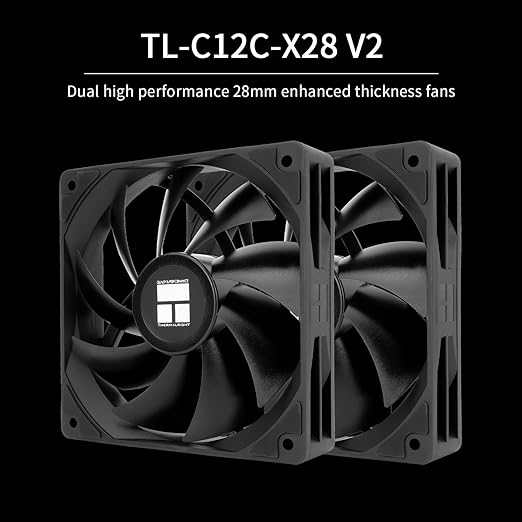

• [Heatsink Specifications] Overall dimensions of the CPU cooler: 125x138x162 mm (LxWxH); fan dimensions: 120x120x28 mm; fan speed: 1850RPM ±10%; airflow: 88.89 CFM; operating noise ≤29.5 dB(A); fan power interface: 4-pin PWM. The dual fans included with the heatsink feature S-FDB bearings, known for their longevity, ensuring sustained cooling performance over time.

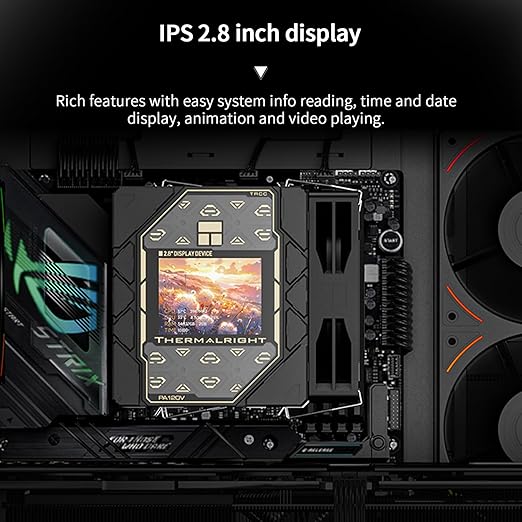

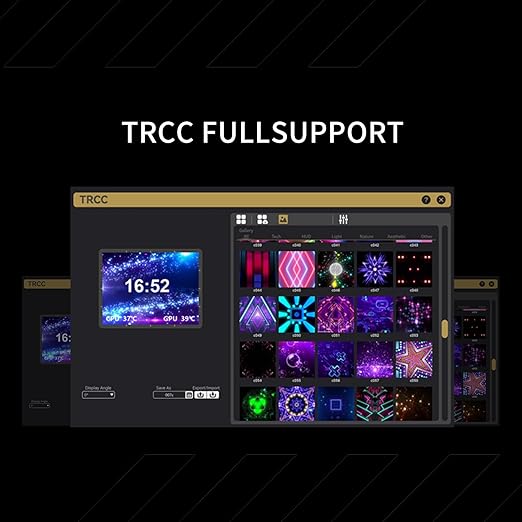

• [2.8-inch IPS LCD Screen] The cpu radiator is equipped with a magnetic top cover display featuring a resolution of 320x240. It allows real-time monitoring of various system parameters and supports customization of background themes via the TRCC control software for personalized presentation.

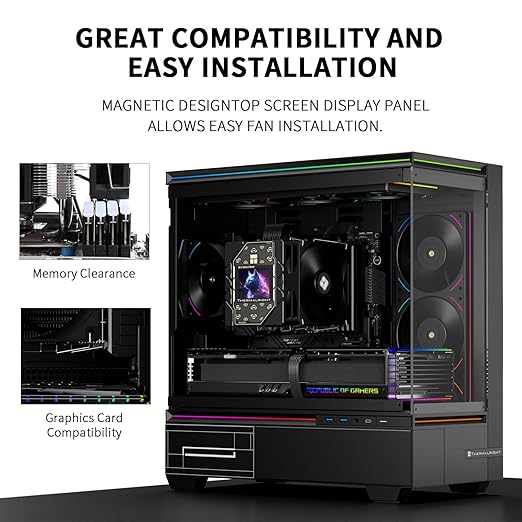

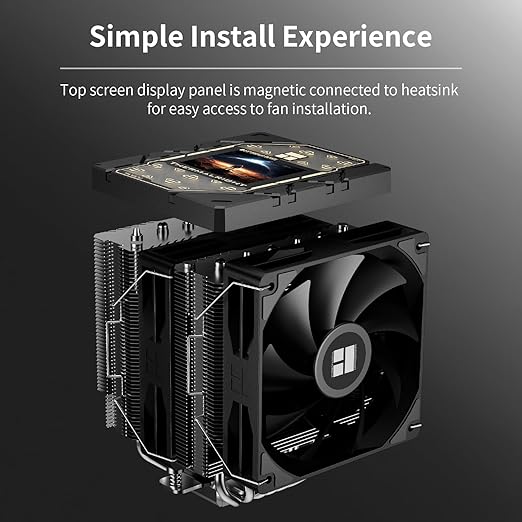

• [Magnetic Screen Top Cover] No screws are required for installation—the magnetic top cover design allows for quick setup and removal. Featuring a high-quality IPS panel, the screen offers excellent viewing angle stability.

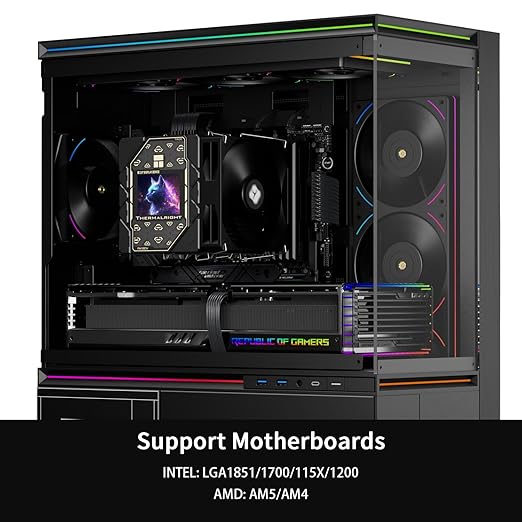

• [Wide Compatibility] The pc cooler supports the following platforms: AMD: AM4/AM5; Intel: LGA1851/1700/1150/1151/1155/1156/1200. It includes mounting brackets for both platforms, allowing for secure and proper installation onto corresponding sockets as per the provided instructions. (Note: Installation on AMD platforms requires using the motherboard's original backplate, which is not included with this product.)

Overview

• Product Dimensions : 4.92"L x 5.43"W x 6.38"H
• Brand : Thermalright
• Power Connector Type : 4-Pin
• Voltage : 12 Volts (DC)
• Cooling Method : Air
• Compatible Devices : Desktop
• Noise Level : 29.5 Decibels
• Material : Aluminum
• Maximum Rotational Speed : 1850 RPM
• UPC : 756993904183
