About This

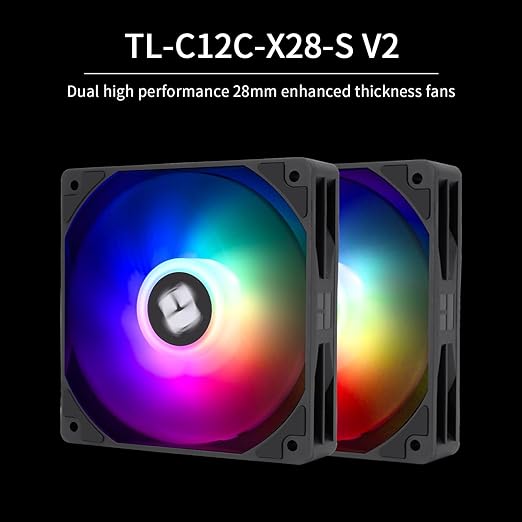

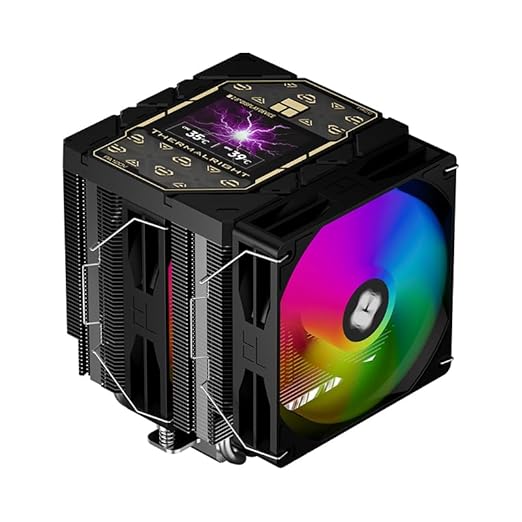

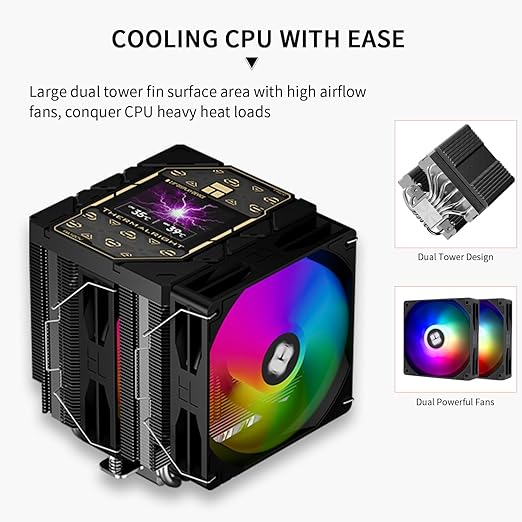

• [Heatsink Specifications] CPU cooler overall dimensions: 125 × 138 × 162 mm (L × W × H), fan dimensions: 120 × 120 × 28 mm, Fan speed: 1850 RPM ±10%, Airflow: 88.89 CFM, Operating noise ≤29.5 dB(A), Fan power connector: 4-pin PWM, RGB interface: 5V 3-pin ARGB. The dual fans included with the cooler feature S-FDB bearings, which offer extended longevity to ensure sustained thermal performance.

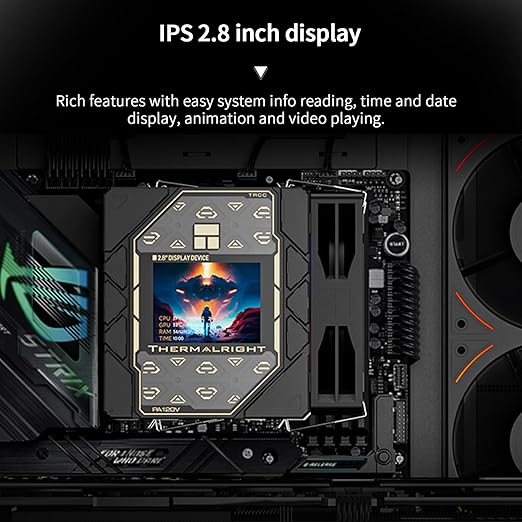

• [2.8-inch IPS LCD Screen] Magnetic-attachment display panel integrated with the heat sink, featuring a 320x240 resolution. Enables monitoring of all system parameters. When paired with TRCC control software, allows customisation of background themes.

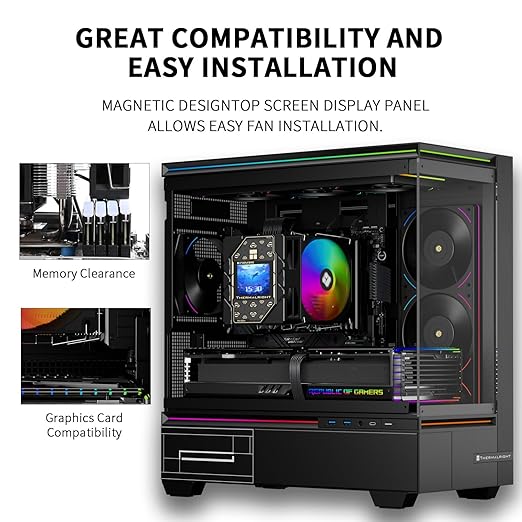

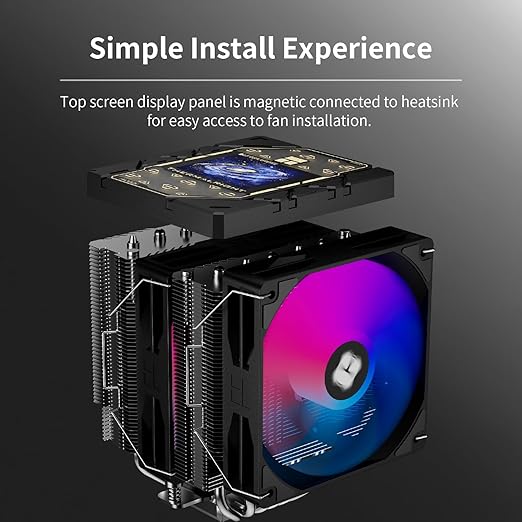

• [Magnetic Screen Cover] Requires no screws for installation; the magnetic cover design enables swift fitting and removal. Features a high-quality display with an IPS panel, delivering excellent viewing angle stability.

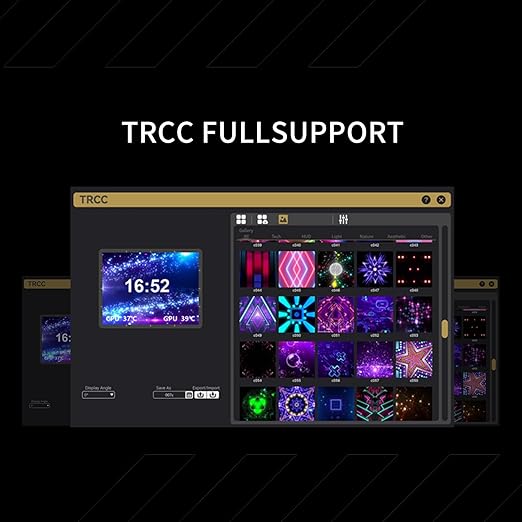

• [TRCC Software] The TRCC Control Centre enables unrestricted monitoring of all system parameter displays, supporting both dynamic and static background visualisation. Power supply and data communication for the LCD screen are provided via the motherboard's 9-pin USB interface. Prior to software installation, please ensure all wiring connections are intact. The software may be downloaded and installed from the official website.

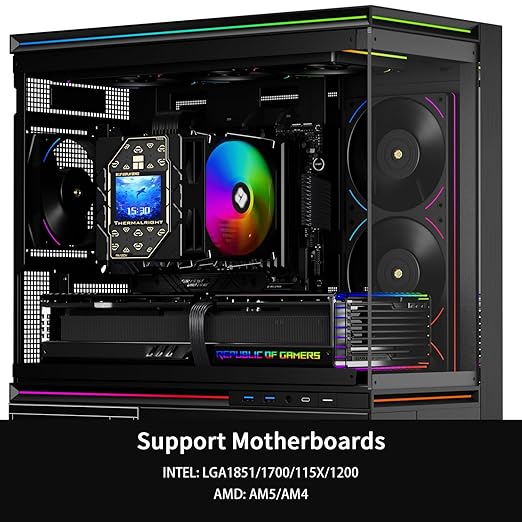

• [Extensive Compatibility] Compatible platforms for the heatsink: AMD: AM4/AM5; Intel: LGA1851/1700/1150/1151/1155/1156/1200. Includes dual-platform mounting brackets for secure installation on corresponding sockets. Follow the manual for installation. (Note: AMD platform installation requires the motherboard's original backplate, which is not included with this product.)

Overview

• Product Dimensions : 4.92"L x 5.43"W x 6.38"H
• Brand : Thermalright
• Power Connector Type : 4-Pin
• Voltage : 12 Volts (DC)
• Cooling Method : Air
• Compatible Devices : Desktop
• Noise Level : 29.5 Decibels
• Material : Aluminum
• Maximum Rotational Speed : 1850 RPM
• UPC : 756993904190
